PullRite Fit Charts

ISR SERIES HITCHES

#2400 SuperLite

SuperLite logo

#2400 - 20K
#4615 - 24K

@2100 Super 5th

Super 5th logo

#1900 - 16K
#2100 - 20K
#2200 - 24K
#4600 - 24K

#3200 ISR Series SuperGlide fifth wheel hitch

SuperGlide logo

#2700 - 16K
#2900 - 20K
#2300 - 24K

  #3200 - 14K**


ALL THE KITS BELOW FIT LONG OR SHORT BED TRUCKS WITH ANY BRAND ISR HITCH.
HD (HEAVY DUTY) KITS ARE RECOMMENDED FOR USE WITH ISR HD #2200 AND #2300 HITCHES.



NOTE: In order to determine the total tow capacity of a system, you must consider the weight ratings of each component in that system. This includes, but may not be limited to, the rating of the tow vehicle, the fifth wheel hitch, and the hitch’s mounting system. Actual tow capacity of the system will be equal to the lowest rated component UNIVERSAL UNIVERSAL
Heavy Duty
CUSTOM

CUSTOM
Heavy Duty

SUPERRAIL
           GM
2020-2024   2500 & 3500 (NO DRILL)     2770   2338
2016-2019   2500 & 3500 (NO DRILL) (designed for easier install)     2762
2011-2019   2500 & 3500 (NO DRILL)     2724 2226 2328
2001-2016   2500 & 3500 HD 2720
1999-2010   2500 & 3500 HD     2734 2224 2326
2019-2024   1500 (new body style, does not work with GM auto-leveling feature)     2768
2007-2019   1500 (6-1/2’ bed, old body style) 2720   2730
          RAM
2013-2024   3500 (NO DRILL)     2742
2014-2024   2500 (NO DRILL)     2746   2336
2013   2500 (NO DRILL)     2740
2003-2012   2500 & 3500 (*NO DRILL) (does not fit 3500 w/ overload springs) 2720 2220 2736* 2230* 2330*
2016-2024   1500  (does not fit w/ air bags)     2764
2009-2015   1500  (does not fit w/ air bags)     2728
         FORD
2023-2024   F250 & F350 (NO DRILL) (fits 2023 model equipped w/ 2023 frame)***     2774
2017-2023   F250 & F350 (NO DRILL) (fits 2023 model equipped w/ 2022 frame)***     2766   2332
2011-2016   F250 & F350 (NO DRILL)     2738 2228 2324
1999-2016   F250 & F350 2720 2220     2324
1999-2010   F250 & F350     2726 2228
2021-2024   F150     2772
2015-2020   F150 (NO DRILL)     2760
2004-2014   F150 (NO DRILL)     2732
       TOYOTA
2007-2021   Tundra (fits all bed lengths)     2748

ALL THE ABOVE KITS FIT LONG OR SHORT BED TRUCKS WITH ANY BRAND ISR HITCH.
HD KITS ARE RECOMMENDED FOR HITCHES RATED FOR MORE THAN 20K.
** TO DETERMINE CORRECT SUPER SHORT BED TRUCK/TRAILER COMBINATIONS, CLICK HERE
*** LOOK ABOVE THE AXLE IN THE WHEEL WELL ON THE TRUCK FRAME.  2022 FRAMES WILL HAVE 2 ROUND HOLES...2023 FRAMES WILL HAVE 3.

  UNIVERSAL KITS include “L” Brackets, ISR Base Rails & Hardware. Heavy Duty kits include ISR HD Base Rails & Hardware
  CUSTOM KITS include Custom Mounting Brackets, ISR Base Rails, & Hardware. Heavy Duty kits include ISR HD Base Rails, & Hardware
  SUPERRAIL KITS featuring Clean Bed Technology include totally removable SuperRails & Posts, Mounting Brackets & Hardware for a clean truck bed!





TRADITIONAL SERIES SUPERGLIDE HITCHES

#4100 SuperGlide

#4100 - 16K
#4400 - 20K

#4400 SuperGlide


#3100 SuperGlide

#3100 - 12K

Universal Mounting Kits only applicable for #4100 and
#4400 SuperGlide models
#3100 SuperRail Mounting Kits only applicable to the
#3100 Traditional Series SuperGlide

NOTE: In order to determine the total tow capacity of a system, you must consider the weight ratings of each component in that system. This includes, but may not be limited to, the rating of the tow vehicle, the fifth wheel hitch, and the hitch’s mounting system. Actual tow capacity of the system will be equal to the lowest rated component. UNIVERSAL SUPERRAIL #3100 SUPERRAIL
           GM
2011-2019   2500 & 3500 (NO DRILL)   4428
1999-2010   2500 & 3500 3340 3345
2007-2019   1500 (6-1/2’ bed, old body style)   4423
1999-2007   1500 (6-1/2’ bed, except 2007 mid-year body change) 3340 3345
2019-2021   1500 (5’8” bed, new body style)     3124*
2007-2019   1500 (5’8” bed, old body style)     3117*
2004-2007   1500 (5’8” Bed, except 2007 current body style)     3114*
           RAM
2013   2500 (NO DRILL)   4440
2003-2012   2500 & 3500 (NO DRILL)   3349
2019-2021   1500 (5’8” bed, new body style)  (NO DRILL) (does not fit Ram 1500 w/ factory air suspension)     3125*
2009-2019   1500 (5’7” & 6-1/2’ bed, old body style)     3122*
2002-2008   1500 (NO DRILL)   3349
1995-2002   (except ‘02 1500) 3340 3346
          FORD
1999-2016   F250 & F350 3340 4426
2021   F150 (5’6” bed)     3126*
2015-2020   F150 (5’6” bed)     3123*
2004-2014   F150 (6-1/2’ bed)   3361
1997-2003   F150 (6-1/2’ bed) 3340 3342
2009-2014   F150 (5’ 7” bed)     3119*
2004-2008   SuperCrew F-150 (5’6” bed)     3113*
2001-2003   SuperCrew F-150 (5’6” bed)     3111*
        TOYOTA
2007-2021   Tundra, Double Cab, Short Bed (6-1/2" bed) Universal Rails w/ Custom Mounting Brackets 4421
2001-2006   Tundra, Standard Cab     3112*
2007-2021   Tundra, Crew Max, Super Short Bed (5-1/2" bed)     3118*

ALL THE ABOVE KITS FIT 6-1/2’ SHORT BED TRUCKS, EXCEPT #3100 SUPERGLIDE WHICH IS DESIGNED
FOR SUPER SHORT (5-1/2’) BEDS ONLY.

* TO DETERMINE CORRECT #3100 SUPERGLIDE TRUCK/TRAILER COMBINATIONS, CLICK HERE.


  UNIVERSAL KITS INCLUDE "bolt to the bed"  Baserails, Universal "L" Brackets and Hardware
  SUPERRAIL KITS featuring Clean Bed Technology include totally removable SuperRails & Posts, Mounting Brackets & Hardware for a clean truck bed!
  #3100 SUPERRAIL KITS featuring Clean Bed Technology include totally removable SuperRails & Posts, Mounting Brackets & Hardware for a clean truck bed!



 SINGLE POINT ATTACHMENT HITCHES

graphical user interface, website



  diagram

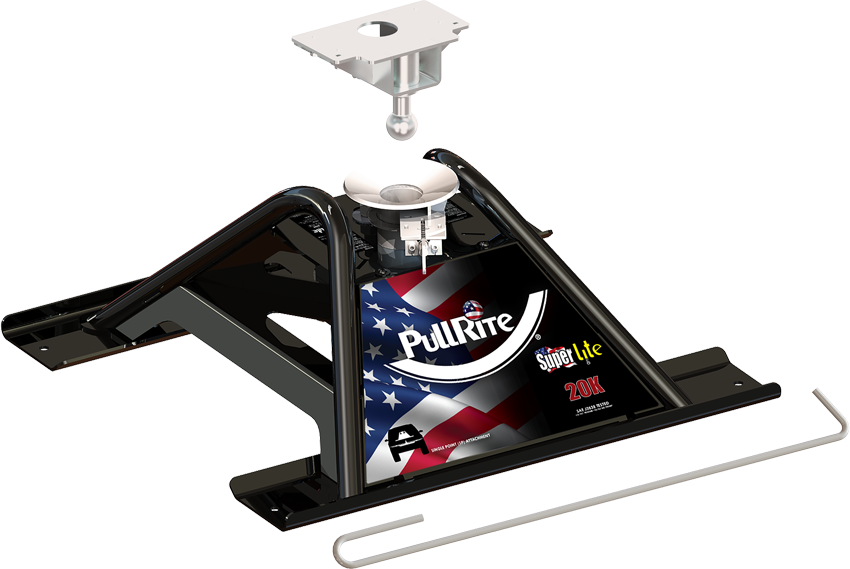

#2600 Single Point Attachment SuperLite    #3900 Single Point Attachment Super 5th

The above Single Point Attachment hitches mount to any OE or aftermarket 2-5/16" gooseneck ball (w/o handle).
For more information on this type of mounting system, click here.


OE Series Gooseneck



a close up of a camera



icon



#4437 OE Series

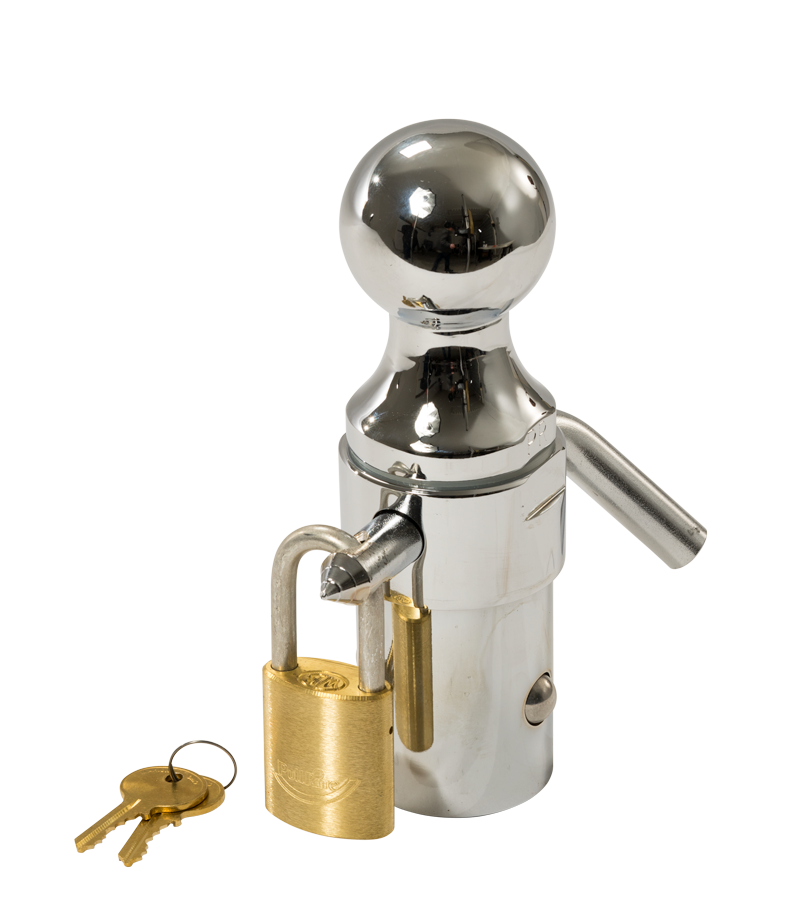

Gooseneck Ball
#2616 GM Bed Support Bracket Kit
#2620 GM Bed Plugs



NOTE: In order to determine the total tow capacity of a system, you must consider the weight ratings of each component in that system. This includes, but may not be limited to, the rating of the tow vehicle, the fifth wheel hitch, and the hitch’s mounting system. Actual tow capacity of the system will be equal to the lowest rated component. MOUNTING HARDWARE
           GM
2016-2024   2500 & 3500, long and short bed trucks w/ OE factory puck 4437
2008-2024   2500 & 3500, long and short bed trucks w/ aftermarket 2-5/16" gooseneck ball SEE GOOSENECK MANUFACTURER
          RAM
2013-2024   2500 & 3500, long and short bed trucks w/ OE factory puck 4437
2008-2024   2500 & 3500, long and short bed trucks w/ aftermarket 2-5/16" gooseneck ball SEE GOOSENECK MANUFACTURER
         FORD
2010-2024   F250 & F350, long and short bed trucks w/ OE factory puck 4437
2008-2024   F250 & F350, long and short bed trucks w/ aftermarket 2-5/16" gooseneck ball SEE GOOSENECK MANUFACTURER





OE PUCK SERIES HITCHES AND ADAPTERS

a close up of a computer

OE Puck Series
Super 5th

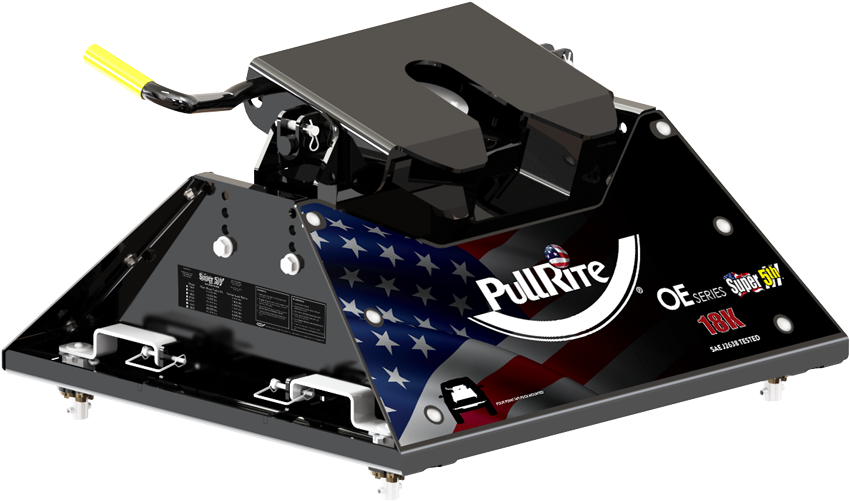

OE Puck Series Fifth Wheel Hitches

What are OE Puck products?  OE stands for "Original Equipment."  Our OE Series of direct attachment fifth wheel hitches were designed for Ford, GM and Ram trucks that come equipped with mounting points that are installed in the truck direct from the factory.  Typically called "pucks," these mounting points provide a quick and easy means to get a clean bed when you're not towing.

table

OE Puck Series
SuperGlide

NOTE: In order to determine the total tow capacity of a system, you must consider the weight ratings of each component in that system. This includes, but may not be limited to, the rating of the tow vehicle, the fifth wheel hitch, and the hitch’s mounting system. Actual tow capacity of the system will be equal to the lowest rated component.


OEX


#4900 OEX Series Super 5th for GM trucks


OE Super 5th

#1800 OE Puck Super 5th

OE SuperGlide

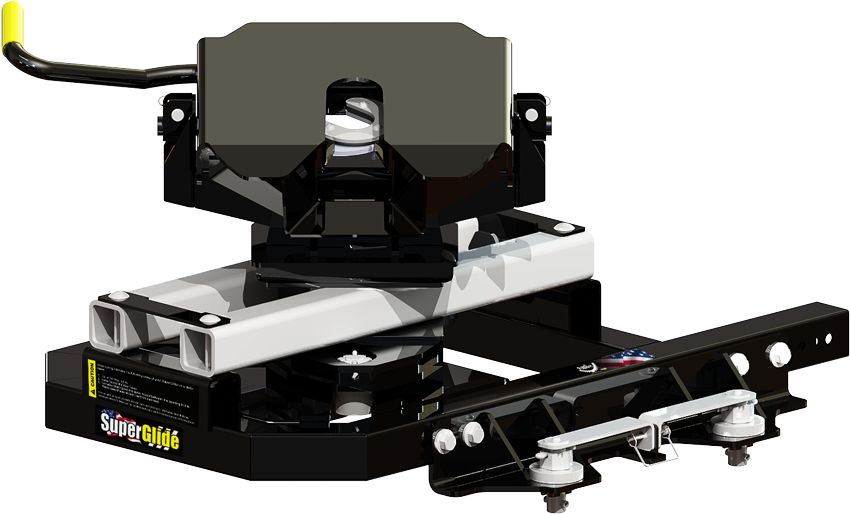

#2715 OE Puck SuperGlide

         FORD
2010-2024   F250 & F350 w/ Ford's OE factory puck 4700 or 4715 1300 or 1400 2714 or 2914
           GM
2020-2024   2500 & 3500 w/ GM's OE factory puck 4900 or 4915 1800 4500
2016-2019   2500 & 3500 w/ GM's OE factory puck   1500 or 1600 2715 or 2915
          RAM
2014-2024   2500 & 3500 w/ Ram's OE factory puck 4800 or 4815   2315
2013   3500 w/ Ram's OE factory puck 4800 or 4815   2315



#4444 OE Series Rail Adapter

#4444 GM Rail Adapter

Industry Standard to OE Puck Series
Rail Adapters

Do you own a truck with an OE (original equipment) tow package? PullRite has engineered new OE Series adapters that work with your original equipment tow package! These OE Series adapters are modular and break down into lightweight, manageable pieces for easy and quick removal and installation with NO TOOLS REQUIRED! Designed to give you more choices, you can use these adapters with any ISR Series hitch!

#4439 OE Series Rail Adapter

#4439 Ram Rail Adapter
#4442 Ford Rail Adapter
#4452 GM Rail Adapter

NOTE: In order to determine the total tow capacity of a system, you must consider the weight ratings of each component in that system. This includes, but may not be limited to, the rating of the tow vehicle, the fifth wheel hitch, and the hitch’s mounting system. Actual tow capacity of the system will be equal to the lowest rated component. ISR RAIL ADAPTERS
                    GM
2020-2024   2500 & 3500 4452
2016-2019   2500 & 3500 (not compatible with #2300 HD SuperGlide) 4444
                   RAM
2014-2024   2500 & 3500 4439
2013   3500 4439
                  FORD
2010-2024   F250, F350 & F450 4442









QCCP Logo

FIT CHART
CAPTURE PLATES ARE A REQUIRED ELEMENT OF EVERY SUPERGLIDE HITCH
(click here to learn how to measure your king pin box)



King Pin Box Manufacturer

MFR#

King Pin Box
Model#

Measurement
A

Measurement
B
Measurement
C
MOST POPULAR BRANDS
  Lippert (less than 13" wide)
mailboxgrayearrings

Lippert 12 inch King PIn ID Sheet
mailboxgrayearrings

Lippert 12 inch King PIn ID Sheet
mailboxgrayearrings

Lippert 12 inch King PIn ID Sheet
331704 1621 * 12-3/4" 3-3/8" 8-7/8"
  Lippert (more than 13" wide, long)
mailboxgrayearrings

Lippert 13 inch King PIn ID Sheet
mailboxgrayearrings

Lippert 13 inch King PIn ID Sheet
mailboxgrayearrings

Lippert 13 inch King PIn ID Sheet
331705 1621 * 13-1/4" 3-3/8" 8-7/8"
  Lippert (more than 13" wide, long)
mailboxgrayearrings

Lippert 13 inch King PIn ID Sheet
mailboxgrayearrings

Lippert 13 inch King PIn ID Sheet
mailboxgrayearrings

Lippert 13 inch King PIn ID Sheet
331705 1116 * 13-1/4" 3-1/2" 9-3/16"
  Lippert (more than 13" wide, medium)
mailboxgrayearrings

Lippert 13 inch King PIn ID Sheet
mailboxgrayearrings

Lippert 13 inch King PIn ID Sheet
mailboxgrayearrings

Lippert 13 inch King PIn ID Sheet
331705 1716 * 13-1/4" 3-1/4" 8-7/8"
  Lippert Rhino Box
mailboxgrayearrings

Lippert Rhino King PIn ID Sheet
mailboxgrayearrings

Lippert Rhino King PIn ID Sheet
mailboxgrayearrings

Lippert Rhino King PIn ID Sheet
331723 Rhino 7-3/8" 2-5/16" 7-3/4"
  MOR/ryde
mailboxgrayearrings

MORryde King PIn ID Sheet
mailboxgrayearrings

MORryde King PIn ID Sheet
mailboxgrayearrings

MORryde King PIn ID Sheet
(do not use w/ Universal or Multi-fit Capture Plates)
331707 Rubber Cushion 13-1/2" 7-5/16" 17-1/2"
  Trailair Rota-Flex/Road Armor
mailboxgrayearrings

Trailair Rotoflex King PIn ID Sheet
mailboxgrayearrings

Trailair Rotoflex King PIn ID Sheet
mailboxgrayearrings

Trailair Rotoflex King PIn ID Sheet
(do not use w/ Universal or Multi-fit)
331760 Most Models 13-5/8" 5" 11-7/16"

  5th Airborne
mailboxgrayearrings

Reese Fifth Airborne King PIn ID Sheet
mailboxgrayearrings

Reese Fifth Airborne King PIn ID Sheet
mailboxgrayearrings

Reese Fifth Airborne King PIn ID Sheet
331709 Most Models 10-1/2" 6-7/8" 14-1/4"
  5th Airborne
mailboxgrayearrings

Reese Fifth Airborne King PIn ID Sheet
mailboxgrayearrings

Reese Fifth Airborne King PIn ID Sheet
mailboxgrayearrings

Reese Fifth Airborne King PIn ID Sheet
331759 Most Models 12" 7-7/8" 19-7/8"
  Demco
mailboxgrayearrings

Demco King PIn ID Sheet
mailboxgrayearrings

Demco King PIn ID Sheet
mailboxgrayearrings

Demco King PIn ID Sheet
(not for use w/ Universal)
331750 Most Models 10-3/4" 5" 11-7/8"
  Demco
mailboxgrayearrings

Demco King PIn ID Sheet
mailboxgrayearrings

Demco King PIn ID Sheet
mailboxgrayearrings

Demco King PIn ID Sheet
(not for use w/ Universal)
331751 Most Models 11-1/4" 5-1/8" 12-1/16"
  Dexter 331731 Most Models 12" 5-9/16" 12-1/4"
  Fabex 331720 500's, 765, 770 * 13-1/2" 3-1/4" 9-1/4"
  Fabex 331706 Most Models 12" 4-5/8" 11-3/8"
  Leland 331730 Most Models 14" 5-1/2" 12-1/4"
  Lippert (less than 13")
mailboxgrayearrings

Lippert 12 inch King PIn ID Sheet
mailboxgrayearrings

Lippert 12 inch King PIn ID Sheet
mailboxgrayearrings

Lippert 12 inch King PIn ID Sheet
331711 1621 HD * 12-3/4" 4" 8-7/8"
  Lippert 331710 0719 ** 12-3/4" 6-3/8" 12-1/4"
  MOR/ryde
mailboxgrayearrings

MORryde King PIn ID Sheet
mailboxgrayearrings

MORryde King PIn ID Sheet
mailboxgrayearrings

MORryde King PIn ID Sheet
(do not use w/ Universal or Multi-fit Capture Plates)
331708 Standard 12-1/2" 4-1/8" 8-7/8"
  Reese Revolution
mailboxgrayearrings

Reese Revolution King PIn ID Sheet
mailboxgrayearrings

Reese Revolution King PIn ID Sheet
mailboxgrayearrings

Reese Revolution King PIn ID Sheet
331721 10K Pin Box 10-1/2" 4-1/4" 11"
  Reese Revolution
mailboxgrayearrings

Reese Revolution King PIn ID Sheet
mailboxgrayearrings

Reese Revolution King PIn ID Sheet
mailboxgrayearrings

Reese Revolution King PIn ID Sheet
(*16K uses spacers)
331722 16K or 21K Pin Box 13" or 12-1/2" 4-1/4" 11-3/4"
  Trailair Flex-Air
mailboxgrayearrings

Trailair Airbag-Shock King PIn ID Sheet
mailboxgrayearrings

Trailair Airbag-Shock King PIn ID Sheet
mailboxgrayearrings

Trailair Airbag-Shock King PIn ID Sheet
331761 Most Models 13-1/4" 6-1/8" 12-3/4"
  Trailair Rota-Flex/Road Armor
mailboxgrayearrings

Trailair Rotoflex/Road Armor King PIn ID Sheet
mailboxgrayearrings

Trailair Rotoflex/Road Armor King PIn ID Sheet
mailboxgrayearrings

Trailair Rotoflex/Road Armor King PIn ID Sheet
(do not use w/ Universal or Multi-fit)
331756 Most Models 13-3/8" 5-3/8" 11-7/16"
  Trailair Tri Glide Airbag/Shock Pin Box
mailboxgrayearrings

Trailair Airbag-Shock King PIn ID Sheet
mailboxgrayearrings

Trailair Airbag-Shock King PIn ID Sheet
mailboxgrayearrings

Trailair Airbag-Shock King PIn ID Sheet
331757 Tri Glide Only 12-3/4" 5-15/16" ALL
  Trailair Airbag/Shock Pin Box
mailboxgrayearrings

Trailair Airbag-Shock King PIn ID Sheet
mailboxgrayearrings

Trailair Airbag-Shock King PIn ID Sheet
mailboxgrayearrings

Trailair Airbag-Shock King PIn ID Sheet
331758 Most Models 13-3/8" 7-3/8" 13-1/2"

  Multi-fit and Universal Capture Plates                    (click here to learn how to measure your pin box)

  Multi-fit Capture Plate 3365   * Fits the indicated           pin boxes above 12-3/4" through
13-1/2" and 14"
2-9/16" -- 4" ALL
  Multi-fit Capture Plate 3366  ** Fits the indicated         pin boxes above 12", 12-1/4" or
12-3/4"
5-3/16" --
6-5/8"
ALL
  Universal Capture Plate Kit 3317   INCLUDES:  Universal Capture Plate, Fore & Aft Plate Extensions, Knee Braces
                        & Hardware





Lippert Rhino King PIn ID Sheet
Demco King PIn ID Sheet
Lippert 12 inch King PIn ID Sheet
Lippert 13 inch King PIn ID Sheet
MORryde King PIn ID Sheet
Reese Fifth Airborne King PIn ID Sheet
Reese Revolution King PIn ID Sheet
Trailair Airbag-Shock King PIn ID Sheet
Trailair Rotoflex King PIn ID Sheet
Trailair Rotoflex/Road Armor King PIn ID Sheet
